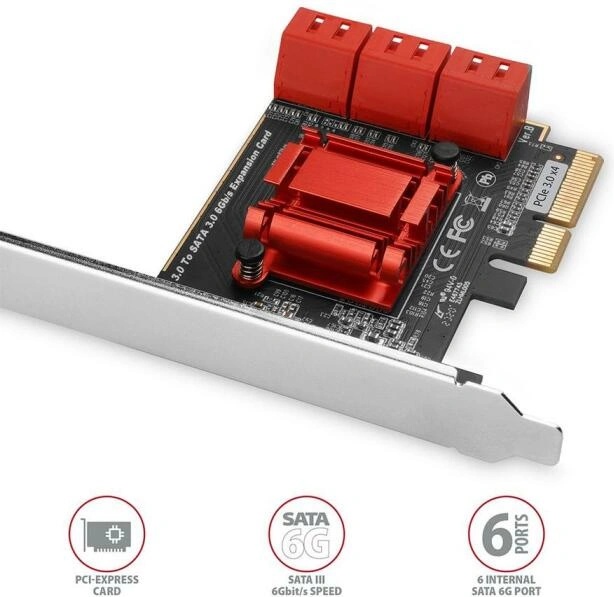

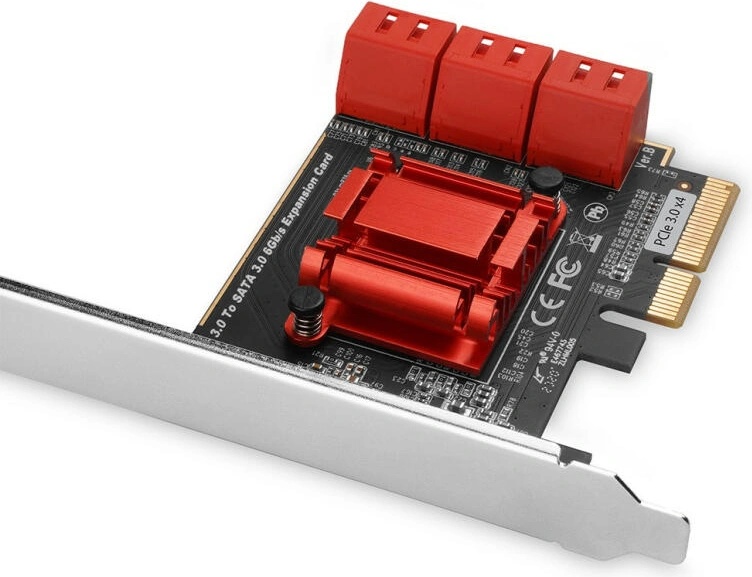

PCES-SA6 PCIe controller 6x SATA 6G
Six-channel SATA III PCI-Express controller with six internal SATA ports. Standard & Low profile.

Input
PCI-Express, 2-Lane

Output
SATA 6G

rate
up to 6 Gb/s

PC connection
x2 slot

design
standard profile, low profile

Extra
TRIM

TheAXAGON PCES-SA6 PCI-Express controller extends your desktop PC with sixhigh-speed SATA III ports with a transmission rate up to 6Gb/s.
Thecard equipped with ASMedia chipset not only supports SATA 3.0specification, but also other SATA technologies such as Hot-Plug, NativeCommand Queue (NCQ), TRIM, or Port Multiplier. Easy installationwithout the need to install drivers on most operating systems.

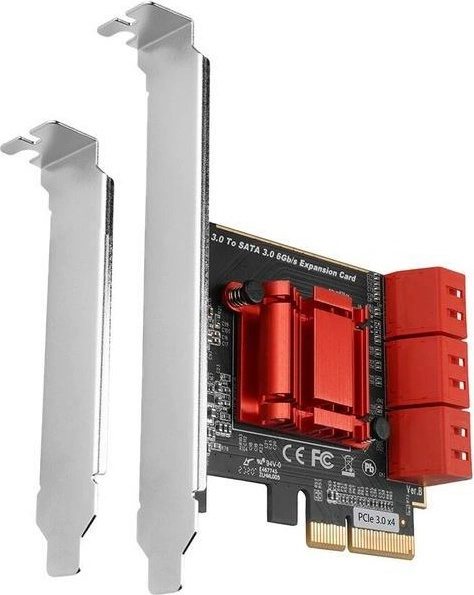

Included low profile bracket allow controller installation into standard and also low profile PC cases.
Input:
PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots.
The bandwidth of 2-Lane PCI-Express 3.0 bus 2 GB/s.
Output:
6x independent Serial ATA port, SATA III 6G standard.
6x internal 7-pin SATA data connector.
Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.
Other features:
Full Plug and Play support.
Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).
Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4.
Fully supports Hot Plug connecting and disconnecting of SATA devices while running.
Supports Native Command Queuing (NCQ).
TRIM feature support for SSD disks.
Supports Port Multiplier Command Based Switching.
The ASMedia ASM1166 chipset is used.
Supported OS:
MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012/ 2016 / 2019 / 2022 and later (supported are all 32- and 64-bitWindows OS versions), Linux with kernel 2.6. x and later.
Package contains:
PCI-Express SATA controller,
low profile brackets,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR /GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN /ARA,
packed in a cardboard box.

Input

interface
PCI-Express 3.0

number of lines
2-Lane (x2)

rate
6 Gbit/s

compatibility
PCI-Express 1.0a / 1.1 / 2.0 / 2.1

compatibility
x4 / x8 / x16 PCIe slot

Output

interface
Serial ATA

rate
6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I)

connector
6x internal 7-pin SATA data male

compatibility
all SATA I / SATA II / SATA III disks and drives

total permeability
2 GB/s

Supported features

TRIM
yes

automatic installation
yes

NCQ
yes

Port Multiplier
yes

Plug and Play
yes

Hot Plug
yes

Other features

standard profile
yes

low profile
yes

chipset
ASMedia ASM1166

OS support

MS Windows
11 / 10 / 8.1 / 8 / 7

MS Windows Server
2022 / 2019 / 2016 / 2012 / 2008

Linux
kernel 2.6. x and higher
